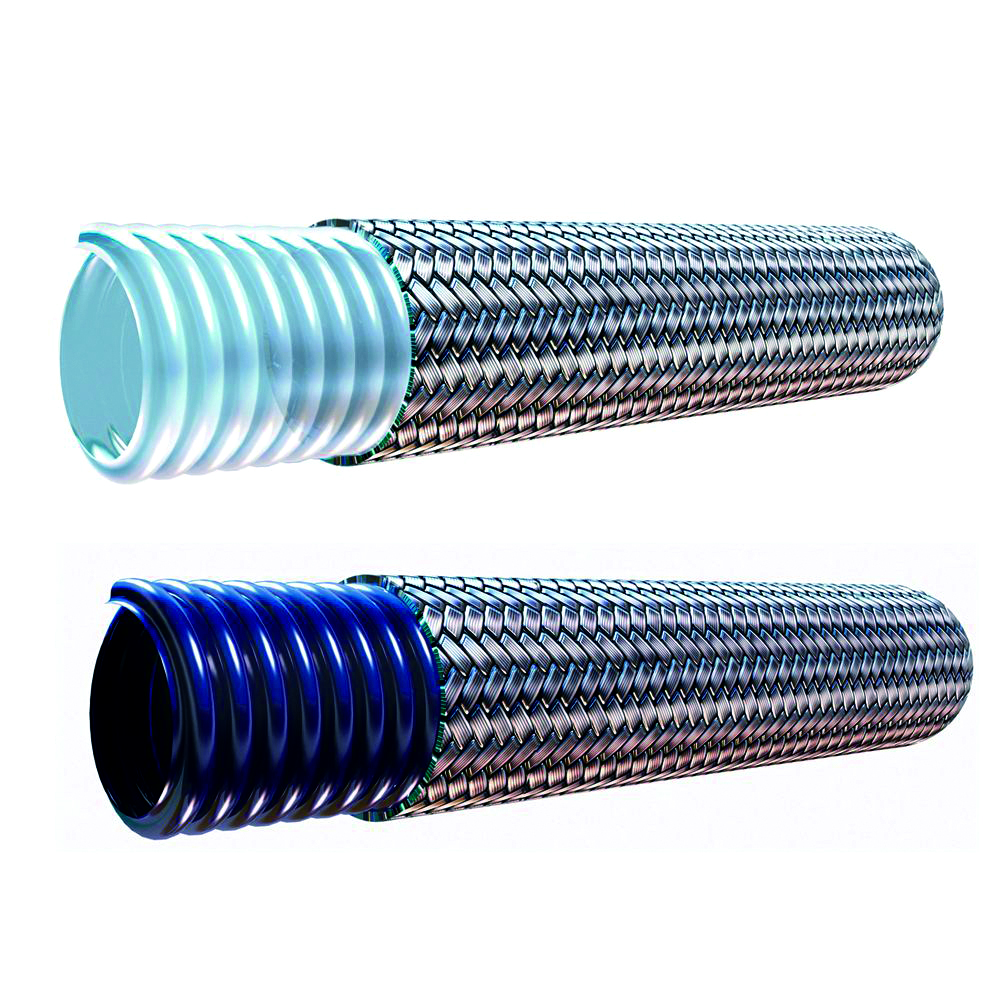

Tube:PTFE hose,for high and low temperature used,anti-corrosive,non-stick.
Cover:SUS304 stainless steel braided,higher the pressure resistance,all kinds of couplings can be available.
Temperature: constant use -50℃~+210℃，instant sue-70℃~+260℃
| Inside Ø mm |
Outside Ø mm |
Thickness | Working Pressure |
Burst Pressure |
Bend Radius | Length | |
| Inch | mm | mm | mm | Bar | Bar | mm | m |
| 3/16 | 4.9~5.1 | 8.7 | 0.9~1 | 210 | 840 | 18 | ≥10 |
| 1/4 | 6.8~7.1 | 10.7 | 0.9~1 | 166 | 664 | 20 | ≥10 |
| 5/16 | 8.1~8.3 | 12.5 | 0.9~1 | 158 | 632 | 23 | ≥10 |
| 3/8 | 10.0~10.2 | 15.6 | 0.9~1 | 124 | 496 | 25 | ≥10 |
| 1/2 | 13.0~13.2 | 18.5 | 0.9~1 | 106 | 424 | 28 | ≥10 |
| 5/8 | 16.0~16.3 | 22.0 | 0.9~1 | 78 | 240 | 51 | ≥10 |
| 3/4 | 19.1~19.3 | 26.7 | 0.9~1 | 67 | 210 | 64 | ≥10 |
| 7/8 | 22.3 | 29.4 | 1.0~1.2 | 63 | 191 | 85 | ≥10 |
| 1 | 25.4~25.7 | 31.3 | 0.9~1 | 56 | 164 | 90 | ≥10 |
| 1-1/4” | 32.2-32.5 | 42.0 | 1.4-1.5 | 30 | 93 | 100 | ≥10 |
| 1-1/2” | 39 | 50 | 1.4-1.5 | 25 | 80 | 155 | ≥10 |
| 2” | 51.5-51.8 | 63.5 | 1.95-2.0 | 20 | 62 | 200 | ≥10 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
